You know, in the fast-changing world of electrical engineering, there's been a real boost in demand for reliable, efficient componentslike DC rated contactors. I recently came across a market report from Allied Market Research, and it predicts that the global Dc Contactor market will hit around$2.5 billion by 2027. That's mainly thanks to the rapid rise of new energy vehicles and renewable energy setups. At Zhejiang Sayoon Electric Co., Ltd., we rely heavily on our medium- and high-load DC contactors—they’re essential for switching and controlling circuits in all sorts of applications, from communication power supplies to electroplating systems.
Picking the right DC rated Contactor Isn’t just a technical choice; it’s key tomaking sure your projects run smoothly and safely. In this quick tutorial, I’ll walk you through the main things to think about when choosing the perfect DC contactor so you can be confident your projects meet industry standards and do what they’re supposed to do.
Understanding DC Rated Contactors: Key Concepts and Terminology
So, when you're picking out a DC rated contactor for your electrical projects, it's super important to get a handle on some key concepts and terminology. Basically, these contactors are designed specifically to handle high-current direct current—think electric vehicles, solar power setups, that kind of thing. Interestingly, a recent report from the International Electrotechnical Commission (IEC) predicts that the demand for these DC contactors is gonna jump by over 25% in the next five years. Why? Well, with more solar installs and electric mobility taking off, it makes sense! This trend really emphasizes how critical it is to choose the right contactor — it’s all about keeping things efficient and reliable.
One term that everyone should understand is 'making and breaking capacity.' This just means how well a contactor can connect and disconnect electrical circuits without messing things up. For example, specialized DC contactors need to handle pretty hefty inrush currents—sometimes up to 10 times the usual current—according to a study by IEEE. Oh, and don’t forget about voltage ratings — picking a contactor that can handle the maximum voltage your system runs at is key for optimal performance and making sure it lasts. Getting a grip on these details really helps you make smarter choices, which means your systems will be safer and work better overall.
Factors to Consider When Selecting a DC Rated Contactor
When you're choosing a DC-rated contactor for your electrical project, there are a few key things you really want to keep in mind to make sure it works well and stays reliable. First off, pay close attention to the contactor’s current and voltage ratings—these should match your specific needs. The IEC standards suggest that your contactor’s rated current should be higher than your load current to handle any surges that might happen. Most folks in the industry recommend going for a contactor with a rating at least 1.25 times your full load current—that way, you prevent overheating and it lasts longer.
Another important point is where you’re planning to install it. The environment matters a lot—whether it’s inside, outside, or somewhere with tough conditions. NEMA classifies enclosures to help you choose the right protection—things like dust, moisture, or corrosive stuff can really mess with your equipment if you don’t take that into account. Oh, and don’t forget about the switching capacity! For loads with inductive characteristics, special DC contactors often come with extra features like pre-energization circuits that cut down on arcing at the contacts, which makes everything safer and more reliable. If you keep these points in mind, you'll be able to pick out a DC contactor that really fits your project’s electrical needs—simple as that.
Different Types of DC Rated Contactors and Their Applications
When you're choosing a DC-rated contactor for your electrical projects, it’s really important to get a good grasp of the different types out there and what they’re best suited for. These contactors are key parts in all sorts of electronic systems—they help control how power gets distributed to different loads efficiently. You’ll mostly see two main types: magnetic DC contactors, which are great for handling high voltages and currents, and solid-state contactors, which are all about switching quickly without wearing out as fast. Each one has its own perks, depending on what your project needs in terms of power and the environment it’s working in.
You’ll find DC contactors being used across a bunch of industries—think renewable energy setups, electric vehicles, and industrial automation. For example, in solar power systems, they help manage the flow of energy from solar panels to the inverters, making sure everything runs smoothly and efficiently. In electric cars or hybrids, they’re pretty much essential for controlling power. As electrification keeps growing and markets expand, understanding how these different contactors work and where they’re best used can really make a difference in designing and implementing your projects more effectively.
Evaluating Load Requirements for Your Electrical Projects
Hey, so if you're about to dive into a project involving DC-rated contactors, one of the most important things you gotta do first is check out your load requirements. Knowing exactly what your application needs helps you pick a contactor that can really handle the current and voltage without giving you headaches later on. It's a good idea to look at both the steady, continuous loads and those occasional peaks — especially the inrush currents that happen when you first turn things on. Doing this right can save your equipment from overheating and also help it last longer in the long run.
And don’t forget, you should also think about how often your setup is running — that’s the duty cycle. Some applications need contactors built for quick, occasional uses, while others need ones that can handle running all the time. It’s also worth figuring out what kind of loads you’re working with — resistive, inductive, or capacitive — because that’ll influence what kind of contactor you should get. When you match the specs of the contactor with what your load needs, everything tends to run smoother and more reliable, plus you stay safe while you're at it. So, it’s all about doing a bit of homework upfront — it really pays off in the long run.
Safety Standards and Compliance for DC Rated Contactors
When you're picking out a DC-rated contactor for your electrical projects, it's really important to get a good grasp on safety standards and compliance. These contactors need to meet certain regulations to work reliably and to keep everyone safe. For example, the international standard IEC 60947-4-1 lays out the key requirements — like making sure they operate smoothly and disconnect safely. Sticking to these standards isn’t just bureaucratic busywork; it actually helps reduce serious issues like sparking, insulation failures, or overheating — especially when you're dealing with direct current setups.
Also, don’t forget to think about where you’re going to use the contactor. Different environments call for different levels of protection — whether it's dust, moisture, or temperature swings. Picking one with the right IP rating and thermal class can really boost both the safety and lifespan of the device. And, of course, always check that the parts are certified by reputable organizations. That way, you know it’s up to snuff and will perform well under the conditions you’ve got. Long story short, paying attention to these details means less stress and more confidence in your electrical setups.
Tips for Installation and Maintenance of DC Rated Contactors
When you're dealing with installing and maintaining DC rated contactors, paying attention to the little details really makes a difference for how well they perform and stay reliable in your electrical setups. First off, before you even start installing, take a moment to check what your system actually needs — like voltage and current ratings — so you can pick the right contactor. It’s super important to double-check that all wiring is done correctly and that the contactor is placed in a suitable environment, so it doesn’t overheat and cause problems. Using the right tools and following the manufacturer’s instructions can really help avoid mistakes during installation.
And don’t forget, keeping up with regular maintenance is just as vital. Make it a habit to inspect your contactors now and then — look for signs of wear, like discoloration on the contacts or strange noises when they’re running. A gentle cleaning of the contact surfaces to remove any dirt or buildup can go a long way in keeping things running smoothly. Also, double-check that all connections are tight and secure — loose wires are a common culprit for electrical issues. By establishing a routine of careful installation and consistent upkeep, you'll boost the reliability and efficiency of your DC rated contactors in any project you’re working on.

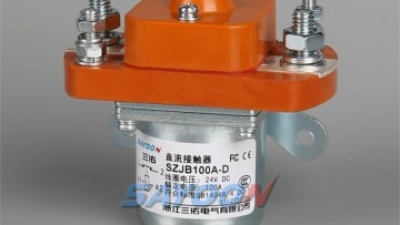

Maximize Efficiency and Safety with SZJB100A-D Normally Closed DC Contactor for Your Electrical Projects
In the realm of electrical projects, safety and efficiency are paramount. The SZJB100A-D Normally Closed DC Contactor stands out as an essential component designed to enhance both of these crucial aspects. This innovative device offers robust fault protection, ensuring that when unexpected conditions arise, power can be swiftly cut off. This rapid response is vital for safeguarding both equipment and personnel, minimizing the potential for damage and creating a safer work environment.
The ability to quickly activate protective measures during a fault situation is one of the key advantages of using normally closed DC contactors. With the SZJB100A-D, engineers and electricians can implement a system that not only prioritizes safety but also streamlines operational efficiency. By reducing the risk of electrical hazards, this contactor contributes to more reliable performance of electrical systems, allowing professionals to focus on their projects without the looming concern of potential failures or accidents.
Incorporating the SZJB100A-D into your electrical installations doesn’t just elevate the safety standards but also enhances the overall performance of your projects. This reliability is particularly crucial in high-stakes environments where electrical systems are subjected to rigorous demands. By choosing this normally closed DC contactor, you can maximize safety and efficiency, ensuring your electrical projects can withstand the test of time.
FAQS
: DC rated contactors are electrical devices designed specifically to control high-current direct current applications, such as those found in electric vehicles and renewable energy systems.
Making and breaking capacity refers to a contactor's ability to establish and interrupt electrical circuits safely. It’s crucial for avoiding damage during operation, especially due to high inrush currents.
The most common types include magnetic DC contactors, which handle high voltage and current, and solid-state contactors, which allow for quick switching with minimal wear.
DC rated contactors are utilized across various industries, including renewable energy, electric vehicles, and industrial automation.
Evaluate the specific demands of your application by assessing continuous and peak loads, inrush currents, and the duty cycle to ensure the contactor can handle the necessary current and voltage.
The voltage rating indicates the contactor's ability to tolerate the peak voltage of your system, which is essential for optimal performance and longevity.
Solid-state DC contactors provide quick switching capabilities and experience minimal wear over time, making them suitable for applications that require frequent operation.
Different load types—resistive, inductive, or capacitive—require specific contactors to handle their unique characteristics effectively, impacting the performance and reliability of your system.
The demand is expected to surge due to the growth of solar power installations and electric mobility, driving the need for efficient power control solutions in these applications.
The duty cycle indicates whether the contactor will be used intermittently or continuously, guiding you to choose a contactor that fits the operating conditions of your electrical project.
Conclusion
In today’s world of electronics, picking the right DC-rated contactor is honestly a pretty big deal for all sorts of projects. Whether you’re working with new energy electric vehicles, communication power supplies, or electroplating setups, making the right choice can really make or break things. I mean, understanding the basics and the key terms about DC rated contactors actually helps engineers and tech folks make smarter decisions. Things like load needs, safety rules, and staying compliant are super important when you're choosing a contactor to make sure everything runs smoothly and reliably.
Looking into different types of DC rated contactors shows that each one has its own special uses, so it’s easier to pick the right fit for whatever you’re working on. Plus, how you install and care for these components really matters—if you do it right, they’ll last longer and work better. Here at Zhejiang Sayoon Electric Co., Ltd, we’re proud to offer medium and high-load DC contactors that are built to handle a variety of needs across different industries. We want to make sure every project is safe, reliable, and goes off without a hitch.
