In the fast-moving world of electrical engineering, picking the right equipment isn’t just a technical detail – it’s actually crucial for keeping things running safely, efficiently, and reliably. Take the Full Voltage Contactor, for example—it’s a pretty common component in a lot of electrical setups. I remember talking to Dr. Sarah Thompson, an expert at Circuit Solutions Inc., who said, “Choosing the correct Full Voltage Contactor can make a huge difference when it comes to how long your electrical systems last and how dependable they are.” That really hits home, right? It’s not just about knowing the technical specs but also understanding how these devices are used in different environments.
Full Voltage Contactors play a key role in controlling motors and distributing power. They’re the workhorses that keep electrical systems running smoothly by switching things on and off reliably. But here’s the thing—since there are tons of options out there, figuring out which one is the best fit can get pretty overwhelming. Things like amp ratings, voltage compatibility, and the environment where they’ll be used all matter a lot when choosing the right contactor.
In this article, I’ll walk you through the main things to think about and share some insights from experts to help make the selection process a whole lot easier. The goal: find A Contactor that fits your specific electrical needs and helps keep your systems running at peak performance.
Understanding Full Voltage Contactors and Their Functionality
Full voltage contactors play a crucial role in electrical systems by controlling the Power Supply to various equipment and devices. These electromechanical switches enable the connection and disconnection of power to motors, lighting, and heating equipment, facilitating efficient operation and management of electrical loads. By receiving a control signal, full voltage contactors can instantly engage or disengage, providing responsive control and minimizing power loss.
When selecting a full voltage contactor, it is essential to consider factors such as the load type, voltage rating, and operating environment. For instance, ensure that the contactor's current rating matches or exceeds the demands of the connected load to prevent overheating or damage. Moreover, understanding the required voltage, whether AC or DC, is vital for compatibility with your electrical system.
**Tips:**
1. **Check Duty Cycle**: Evaluate how often the contactor will be activated. A higher duty cycle may require a more robust design to withstand frequent usage.
2. **Environment Considerations**: If the contactor will be exposed to harsh conditions like moisture or dust, opt for models with suitable enclosures that ensure longevity.
3. **Future Expansion**: Consider your future electrical needs. Selecting a contactor with a higher rating can allow for additional load capacity as your demand grows without the need for replacement.
Key Factors to Consider When Selecting a Full Voltage Contactor

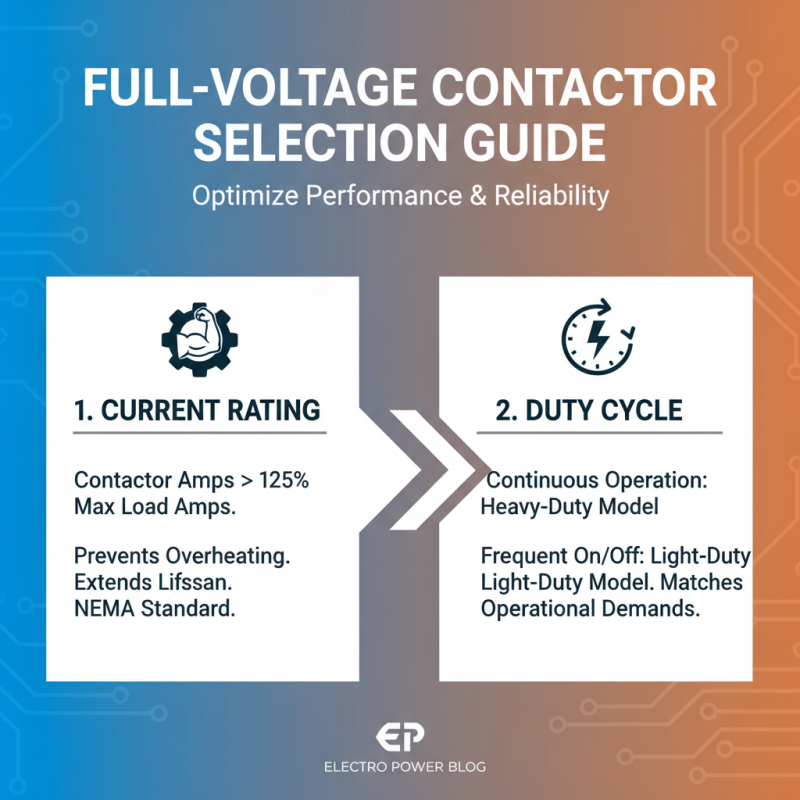

When selecting a full voltage contactor for electrical applications, several key factors must be considered to ensure optimal performance and reliability. First, it is crucial to assess the contactor’s current rating, which is fundamental to avoid overheating and ensuing failures. According to the National Electrical Manufacturers Association (NEMA), ensuring that the contactor’s current rating exceeds the maximum load current by at least 25% can enhance the lifespan and efficiency of the component. Additionally, understanding the duty cycle of the application—whether it involves continuous operation or frequent on-off switching—can inform the selection process. This would dictate the need for a contactor designed for specific operational demands, such as heavy-duty or light-duty models.
Another critical aspect to consider is the operating environment of the full voltage contactor. Contactors are often rated for various environmental conditions, including temperature, humidity, and exposure to contaminants. Data from the International Electrotechnical Commission (IEC) indicates that a significant percentage of equipment failures are attributed to inappropriate environmental conditions. For example, selecting a contactor with appropriate ingress protection (IP) ratings can prevent dust and moisture from affecting its functionality. Additionally, factors such as the coil voltage and control circuit requirements must be carefully reviewed to ensure compatibility with existing systems, ensuring that the contactor operates reliably within its intended application parameters.
Identifying the Electrical Specifications for Your Application
When selecting a full voltage contactor, one of the most crucial steps is to identify the electrical specifications relevant to your application. This includes understanding the voltage, current ratings, and the operating environment in which the contactor will function. According to industry reports, approximately 70% of electrical failures in industrial settings are attributed to incorrect component specifications. Therefore, ensuring that the contactor meets the voltage and current rating is essential. For instance, if you're working with a three-phase motor, you'll need to consider the specific starting current and overload capacity, as these factors directly impact the performance and longevity of the contactor.
Additionally, the operating environment plays a significant role in the selection process. Factors such as temperature, humidity, and potential exposure to corrosive elements must be taken into account. The National Electrical Manufacturers Association (NEMA) classification system provides guidelines for enclosures that ensure the contactor can withstand specific environmental conditions. Reports indicate that using improperly rated contactors in harsh environments can reduce their lifespan by up to 50%. Therefore, it's essential to evaluate your application thoroughly and consult relevant specifications and standards to ensure reliable operation and prevent costly downtime.
Comparing Different Contactor Ratings and Types
When choosing a full voltage contactor, understanding the different ratings and types is essential to ensure optimal performance for your specific electrical needs. Contactor ratings, typically expressed in amperes, indicate the maximum continuous current the device can safely handle. It’s important to select a contactor whose rating exceeds the maximum load of the application to prevent overheating and potential failure. Additionally, consider the voltage rating, which should match or exceed the operating voltage of your system, as undervoltage can lead to insufficient operation and failure to engage properly.
There are various types of contactors available, each designed for specific applications. AC contactors are commonly used for motors and other inductive loads, while DC contactors are adapted for direct current applications. Furthermore, some contactors are equipped with additional features such as auxiliary contacts, which provide feedback for control purposes, and coil suppression circuits that help mitigate voltage spikes. Selecting the right type involves assessing the nature of the load, switching frequency, and environmental conditions such as temperature and humidity. By carefully comparing these factors, you can ensure that the contactor you choose will effectively manage your electrical requirements.
How to Choose the Right Full Voltage Contactor for Your Electrical Needs
| Contactor Type | Voltage Rating (V) | Current Rating (A) | Number of Poles | Application |
| AC-1 | 230 | 16 | 2 | Industrial Motors |
| AC-3 | 400 | 32 | 3 | Heavy Duty Motors |
| AC-4 | 480 | 40 | 3 | Starting of Induction Motors |
| DC-1 | 120 | 10 | 2 | Light DC Loads |
| DC-3 | 240 | 20 | 2 | Heavy DC Loads |
Assessing Environmental Conditions for Optimal Performance
When selecting a full voltage contactor, it is crucial to assess the environmental conditions in which the contactor will operate. Factors such as temperature, humidity, and exposure to contaminants play a significant role in the performance and longevity of the contactor. For instance, higher temperatures can lead to increased wear and resistance, while high humidity can cause corrosion and electrical failures. Understanding these conditions allows for informed decisions regarding insulation ratings and material choices, ensuring that the contactor can withstand its environment effectively.
Additionally, the presence of dust, chemicals, or moisture in the environment can impact the reliability of the contactor. In industrial settings, for example, a greasy or dusty environment may necessitate the use of sealed or specially coated contactors designed to resist these harsh conditions. Therefore, evaluating the specific environmental variables is essential not only for choosing a contactor that meets performance needs but also for maintaining optimal operation over its lifespan. By prioritizing environmental assessments, electrical engineers can enhance system reliability and prevent unexpected failures.
Installation and Wiring Considerations for Full Voltage Contactors

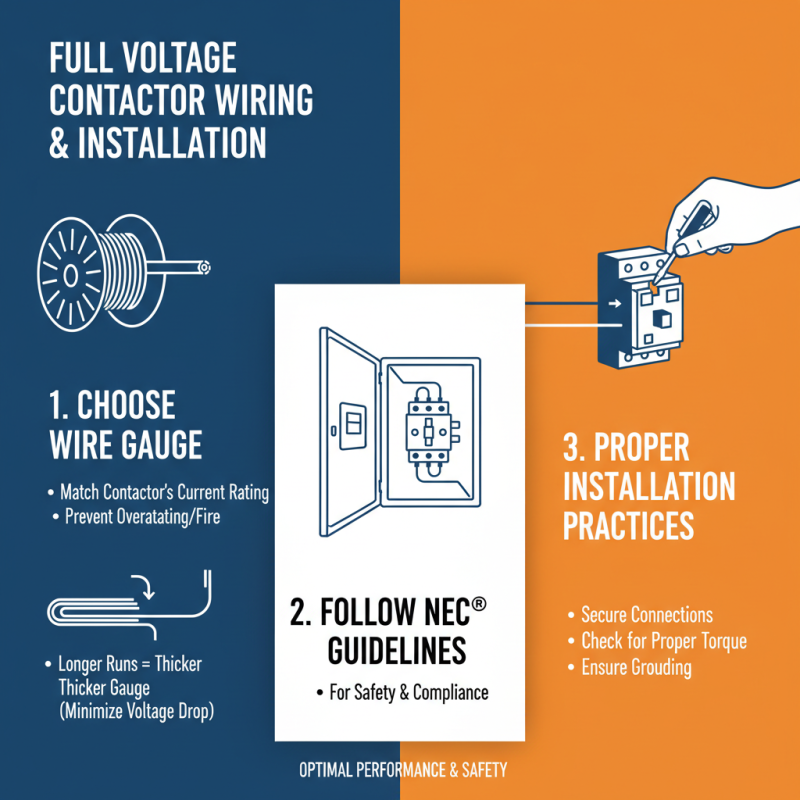

When installing a full voltage contactor, proper wiring and installation practices are crucial for ensuring optimal performance and safety. First and foremost, it is essential to choose the right wire gauge based on the current rating of the contactor. The wire should be capable of handling the load without overheating, which can lead to failure or fire hazards. Additionally, consider the length of the wire run; longer runs may require a thicker gauge to minimize voltage drop. Following the National Electrical Code (NEC) guidelines for wire sizing is a good practice to maintain safety and compliance.
Furthermore, the installation environment plays a significant role in the longevity of the contactor. It should be mounted in a location free from excessive humidity, dust, and corrosive substances, as these can negatively impact the component's functionality. Ensure that the contactor is securely fastened to a stable surface and that all connections are tight to prevent arcing or loosening over time. Using proper grounding techniques is also vital, as it protects the system from electrical surges and provides a safe path for fault currents. By adhering to these installation and wiring considerations, you can enhance the reliability and efficiency of your electrical system.
Maintenance and Troubleshooting Tips for Long-Term Efficiency
Maintaining full voltage contactors is essential for ensuring their long-term efficiency and reliability. Regular inspection for signs of wear and tear, such as overheating or discoloration of contacts, can help identify potential issues before they escalate. Establishing a routine maintenance schedule that includes cleaning contacts, checking for loose connections, and verifying coil voltage can significantly enhance the lifespan of the contactor. Additionally, it's important to monitor the operating environment; excessive moisture, dust, or corrosive chemicals can compromise the performance of the contactor over time.
When troubleshooting a malfunctioning contactor, start by checking the power supply and control circuits to ensure they are functioning correctly. If the contactor fails to engage or disengage, it could be due to a faulty coil or relay. Testing the coil for continuity and inspecting wiring connections for damage can help isolate the problem. In some cases, a replacement of the contactor may be necessary, but careful diagnostics can often resolve issues without incurring additional costs. Keeping thorough records of maintenance activities and any repairs made can also guide future troubleshooting efforts and help maintain system efficiency.
Full Voltage Contactor Efficiency and Maintenance Frequency
Understanding the Benefits and Applications of SEV600AH High Voltage Epoxy Resin Sealed DC Contactor in Modern Electrical Systems
The SEV600AH high voltage epoxy resin sealed DC contactor plays a pivotal role in modern electrical systems, particularly in applications that require safe and reliable performance. One of the primary benefits of this contactor is its inclusion of a normally open contact, making it exceptionally well-suited for charging stations, electric vehicles, and various new energy applications. This design allows for efficient energy management in systems aimed at environmental sustainability and energy conservation.
In addition to its versatility in different electrical environments, the SEV600AH contactor is built to withstand high voltage conditions, ensuring durability and longevity. This quality is essential for the growing sectors of electric transportation and renewable energy, where robust components are necessary to ensure safe and consistent operation. As the demand for eco-friendly solutions continues to rise, products like the SEV600AH will be crucial in supporting the transition toward innovative and green technologies. Its application extends beyond vehicles, influencing road transport infrastructure and energy-saving systems, ultimately contributing to a more sustainable future.
FAQS
: Key factors include the contactor’s current rating, duty cycle, operating environment, ingress protection ratings, coil voltage, and control circuit requirements.
The contactor’s current rating should exceed the maximum load current by at least 25% to enhance lifespan and prevent overheating.
The duty cycle indicates whether the application requires continuous operation or frequent on-off cycling, influencing the selection of either heavy-duty or light-duty contactors.
The operating environment affects the contactor’s performance; factors like temperature, humidity, and exposure to contaminants can lead to failures if not properly accounted for.
IP ratings indicate a contactor's resistance to dust and moisture, which can significantly affect its functionality and reliability in various environmental conditions.
There are AC contactors for motors and inductive loads, DC contactors for direct current applications, and contactors that may include additional features like auxiliary contacts and coil suppression circuits.
The voltage rating of a contactor must match or exceed the operating voltage of the system; undervoltage can result in insufficient operation and failure to engage properly.
Auxiliary contacts provide feedback for control purposes and enhance the functionality of the contactor in a control circuit.
Carefully review the coil voltage and control circuit requirements to ensure the contactor operates reliably within the intended application parameters.
Conclusion
Choosing the right Full Voltage Contactor is crucial for ensuring the efficiency and reliability of electrical systems. This article outlines the essential aspects of Full Voltage Contactors, starting with an understanding of their functionality and the key factors that influence selection. It emphasizes the importance of identifying the specific electrical specifications that meet the requirements of your application, as well as comparing various contactor ratings and types available in the market.
Moreover, the article highlights the need to assess environmental conditions to guarantee optimal performance in diverse settings. It also provides guidance on installation and wiring considerations that are vital for safe operation. Finally, maintenance and troubleshooting tips are discussed to help ensure long-term efficiency and reliability of Full Voltage Contactors, making informed decisions critical for any electrical project.
