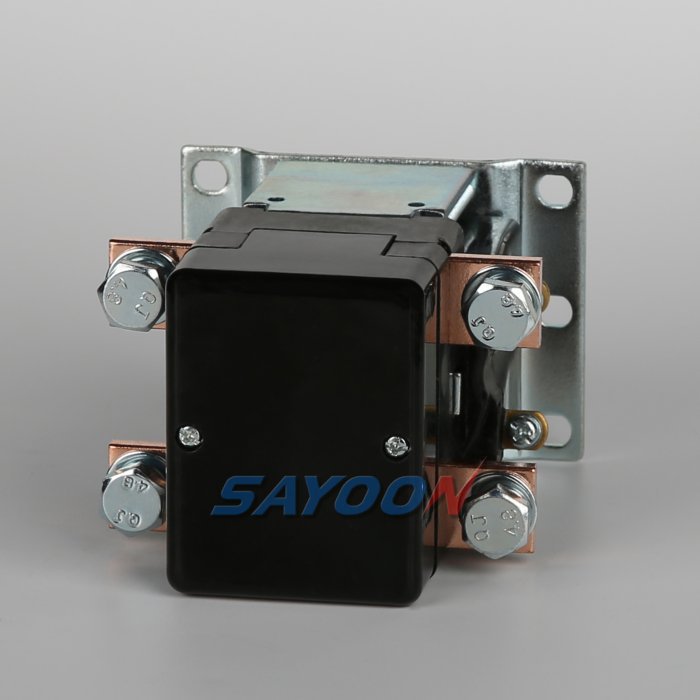

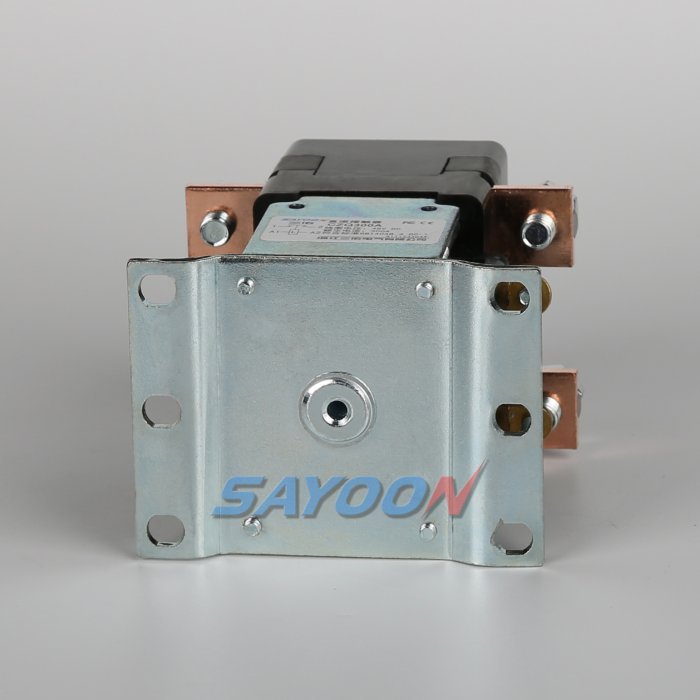

CZQ300A Normally Open DC Contactor

CZQ300A normally open DC contactor is a high-performance electrical switching device designed for DC circuits, widely used in motor control, automation equipment, power management and other fields. Its unique normally open design ensures rapid closure when power is applied, providing fast response and high reliability to meet the needs of various industrial and commercial applications.

product details

FEATURES

The contactor has excellent withstand voltage and current capabilities, can operate stably in harsh environments, and ensure the safety and efficiency of the equipment. The low power consumption of CZQ300A not only helps save energy, but also extends the service life of the equipment and reduces maintenance costs. Whether in power tools, transportation or renewable energy systems, CZQ300A can perform excellently and become your reliable electrical control solution.

Choose CZQ300A normally open DC contactor, you will experience excellent quality and performance, providing strong support for your equipment.

SAYOON MODEL IMPLICATION

CZQ	300A	-□	-□	/24V
1	2	4	5	6

1	Product type
2	Rated current
3	P-With protective cover(default)
4	Working system: CO-Continuous; INT-Intermittent


5	Coil rated voltage:12V, 24V, 36V, 48V, 60V, 72V etc.

USES

This product have one normally open contact, for using in DC circuits and can be powered with battery of recitified power. They perform power switching funcition for power switching operations of traction drives as well as pump motor and other electric vehicles.

TECHNICAL PARAMETERS: (Version 1.39)

SAYOON Product Type	CZQ300A
Contact form	1 NO
Coil Rated voltage (DC V)	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc.
Contact voltage (DC V)	≤80V
Rated load current of contact 48V circuit (DC-1)	300A
Typical voltage drop across contacts per 100A	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯70%
The cooling drop-out voltage at (20±5)℃ (V)	≯35%,≮5%
Working voltage range of 40℃ coil	0.8-1.2Us
Drop-out time (n/o contacts to open)	30ms
Pull-in time (n/o contacts to close)	6ms
Maximum bounce time for contact connection	10ms
Maximum bounce time for contact disconnection	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	1500A/5ms at 48V/DC
Coil power (W)	20-35
Temperature rise of coil (K)	≤60
Temperature rise on outgoing terminal (K)	≤65
Electrical life	20,000 times
Mechanical life	300,000 times
Work specification	Continuous or Intermittent
Contact material	Ag alloy
Load terminal type	M8 Screw
Coil terminal type	M4 Screw
Testing organization certification	CE,FCC

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

LOAD CHARACTERISTIC CURVE

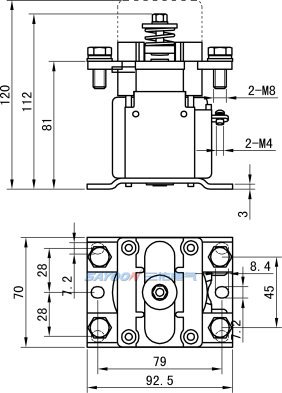

INSTALLATION DIAGRAM

WIRING DIAGRAM

TEMPERATURE CURVE

MECHANICAL ABILITY and USE of the ENVIRONMENT

Contact lead M8 tightening torque (N.m)	≯9.0 appropriate
Coil lead M4 tightening torque (N.m)	≯1.2 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International protection	IP40 (According IEC60947)

ORDER INSTRUCTION

SAYOON Product Type	CZQ300A
U.N.W.	1486g
Package QTY.	20 PCS
Mounting bracket type	Vertical

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: DC Contactor CZQ300A/24V 100pcs, indicating the load rated current 300A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
