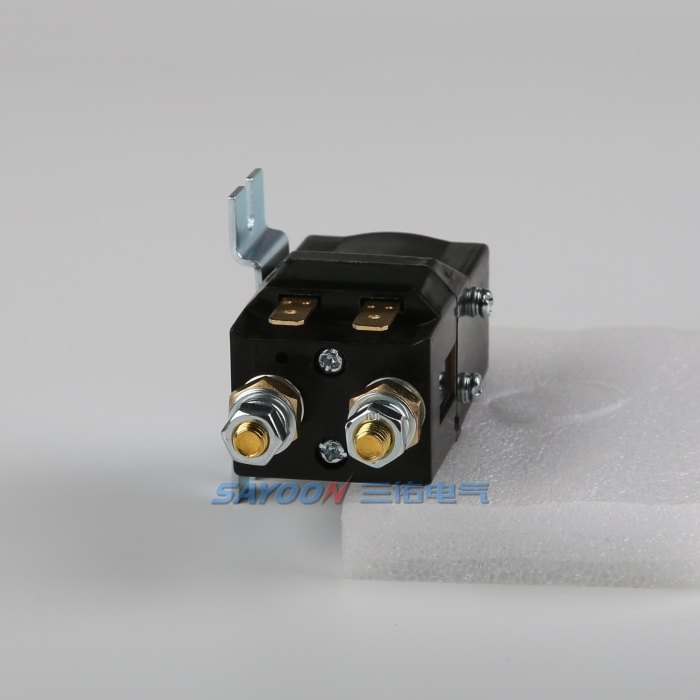

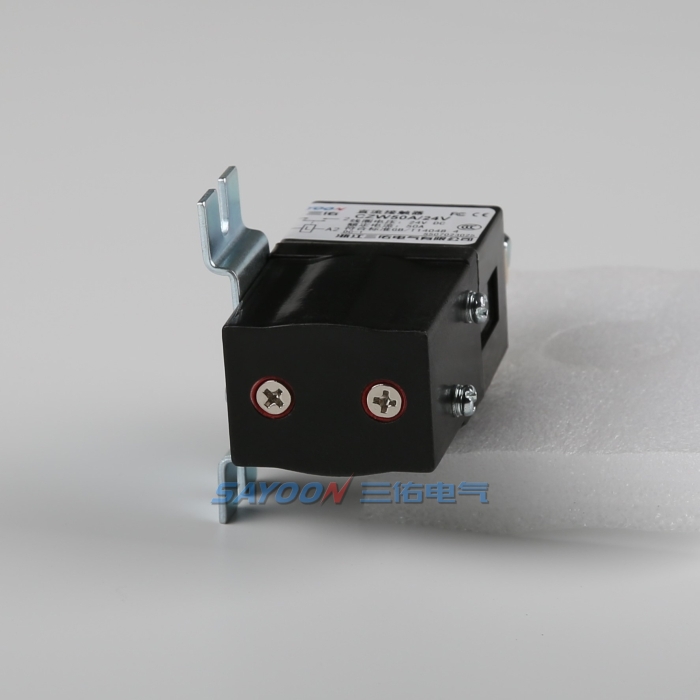

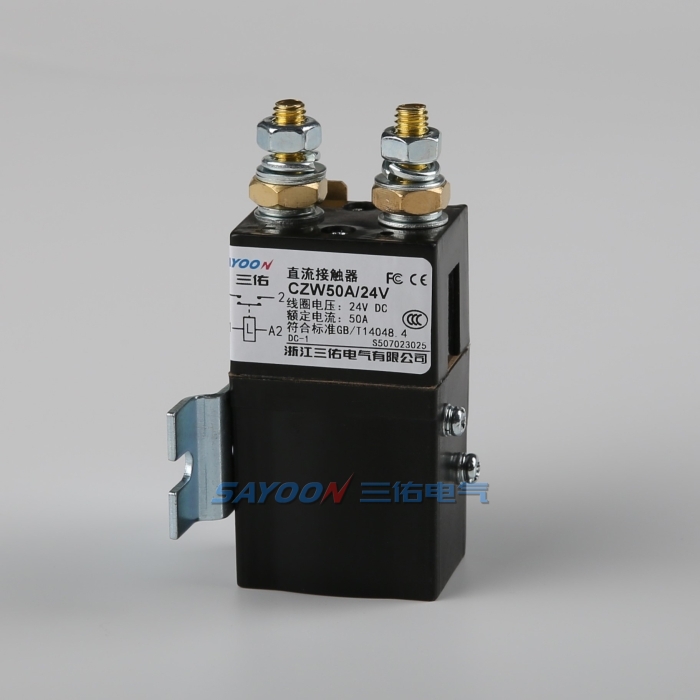

CZW50A-K Magnetic Holding DC Contactor

CZW50A-K magnetic latching DC contactor is a high-performance electrical device designed for reliable current control. The contactor has a variety of rated current options to suit different application requirements.

product details

FEATURES

Its magnetic holding structure is divided into two types: K type adopts single coil and two-contact self-locking design, which is suitable for simple control occasions; while 2K type adopts double coil and three-contact self-locking design, which provides stronger holding force and stability and is suitable for more complex applications.

In terms of installation, CZW50A-K provides a variety of bracket types, including horizontal installation (default), single vertical, two vertical, two horizontal, etc., so that users can choose according to actual needs.

The contactor also has a variety of functional options, such as with suppression diode (l), with pre-charge resistor ®, increased rated current (U), continuous operation (CO) and intermittent operation (IN) to meet different working conditions and performance requirements.

The coil rated voltage range of CZW50A-K is wide, including 12V, 24V, 36V, 48V, 60V and 72V, ensuring its compatibility and reliability in a variety of voltage environments. This contactor is an indispensable component in industrial automation and electrical control systems.

SAYOON MODEL IMPLICATION

CZW	50A	-K	-M	-□	/24V
1	2	3	4	5	6

1	Product type
2	Rated current
3	Magetic holding structure: K-Two joint magnetic retention Sing(le coil, Two joint self-locking); 2K-Three joint magnetic retention (Double coil, Three joint self-locking)

4	Mounting bracket type: M-Horizontal (default); L-One vertical; 2L-Two vertical; 2LM-Two horizontal; DM-Horizontal

5	Other function codes: l-With suppressor diode; R-With pre-charged resistance; U-Increase rated current; CO-Continuous; IN-Intermittent

6	Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

Uses

This product have one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.

Technical Parameters: (Version 1.56)

SAYOON Product Type	CZW50A
Contact form	1 NO
Coil Rated voltage (DC V)	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V etc.
Contact voltage (DC V)	≤60V
Rated load current of contact 48V circuit (DC-1)	50A
Typical voltage drop across contacts per 100A	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯70%
The cooling drop-out voltage at (20±5)℃ (V)	≯35%,≮5%
Working voltage range of 40℃ coil	0.8-1.2Us
Drop-out time (n/o contacts to open)	40ms
Pull-in time (n/o contacts to close)	12ms
Maximum bounce time for contact connection	10ms
Maximum bounce time for contact disconnection	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	600A/5ms at 48V DC
Coil power (W)	5-10
Temperature rise of coil (K)	≤60
Temperature rise on outgoing terminal (K)	≤65
Electrical life	20,000 times
Mechanical life	300,000 times
Work specification	Continuous (default) or Intermittent
Contact material	Ag alloy
Load terminal type	M6 Screw
Coil terminal type	6.3mm spade terminals
检测机构认证	CCC,CE,FCC

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

Load Characteristic Curve

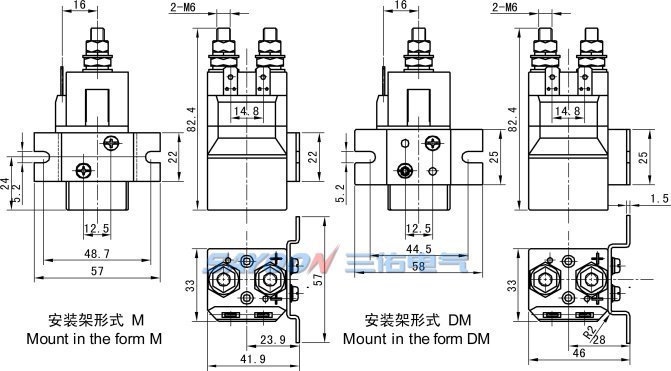

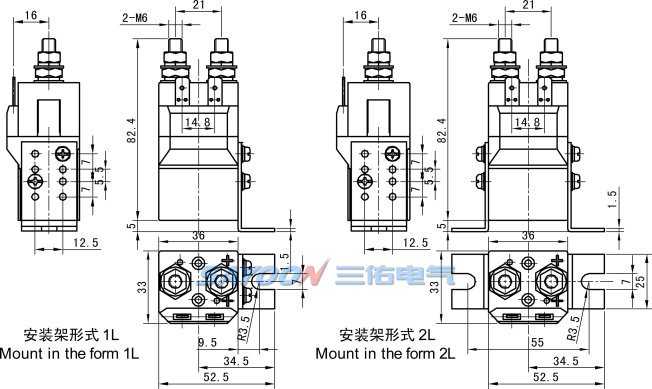

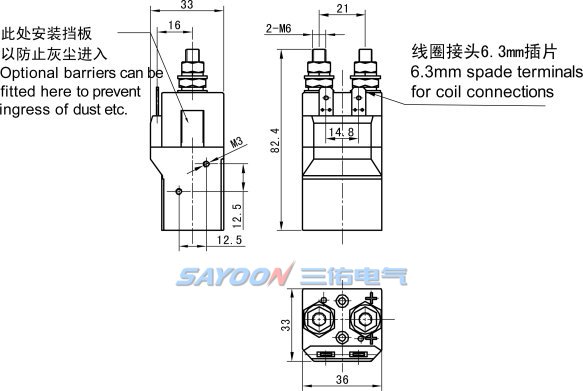

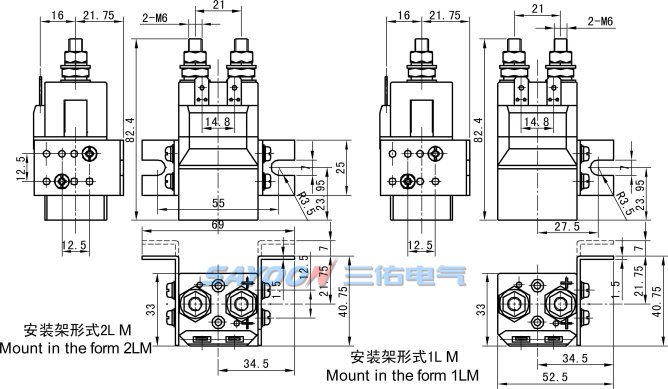

Installation Diagram

Wiring Diagram

Temperature Curve

Mechanical Ability And Use Of The Environment

Contact lead M6 tightening torque (N.m)	≯4.5 appropriate
Coil lead-out torque (N.m)	≯0.8 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International protection	IP40 (According IEC60947)

Order Instruction

SAYOON Product Type	CZW50A
U.N.W.（Includes Horizontal frame）	194g(-M)
Mounting bracket type	M horizontal(default),DM horizontal, 2L Two vertical mounting brackets , 2LM Two horizontal,1L One vertical mounting bracket , 1LM One horizontal

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: DC Contactor CZW50A/24V 100pcs, indicating the load rated current 50A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
