CZWH1600A-K Magnetic Holding DC Contactor

Reliability is another feature of magnetic latching DC contactors. The design and operating principle of these contactors contribute to their reliability and long service life. In environments where equipment failure could result in significant downtime or safety hazards, the reliability of magnetic latching contactors becomes an important consideration. Users can be confident that these contactors will perform stably for a long time, reducing the need for frequent replacement and maintenance.

product details

FEATURES

The versatility of magnetic latching DC contactors is reflected in their wide range of applications. These contactors are commonly used in power systems, automation equipment, and renewable energy fields, among others. They are able to operate effectively in a variety of environments and are suitable for a variety of industries such as manufacturing, transportation, and energy management. As the demand for efficient and reliable electrical components continues to grow, magnetic latching contactors are expected to play an important role in shaping the future of electrical systems.

SAYOON MODEL IMPLICATION

CZWH	1600A	-K	-C	-S	-□	-□	/24V
1	2	3	4	5	6	7	8

1	Product type: 1NO 1NC
2	Rated current
3	Magetic holding structure: K-Two joint magnetic retention (Single coil, Two joint self-locking); 2K-Three joint magnetic retention (Double coil, Three joint self-locking)
4	Magnetic blow-out
5	Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch
6	Mounting bracket type: 2L-Two vertical (default); L-One vertical; M-Horizontal
7	Other function codes: l-With suppressor diode; R-With pre-charged resistance
8	Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

Uses

This product realizes zero power connection when working. Applicable to electroplating power supply, charging pile, telecommunication equipment, automation equipment, energy saving and environmental protection system, road traffic lighting system, program-controlled power supply and uninterruptible power supply equipment.

Technical Parameters: (Version 1.48)

SAYOON Product Type	CZWH1600A-K
Contact form	2 Circuit
Coil Rated voltage (DC V)	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc.
Contact voltage (DC V)	≤60V
Rated load current of contact 48V circuit (DC-1)	1600A
Typical voltage drop across contacts per 100A	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯80%
The cooling drop-out voltage at (20±5)℃ (V)	≯80%
Working voltage range of 40℃ coil	0.8-1.2Us
Pulse dration	200ms≤t≤1s
Operating frequency(square wave)	1 minute≤6 times
Insulation Resistance	100MΩ
Electric strength to resist	50Hz/60Hz 2200VAC 1minute
Typical fault currents which can be ruptured	4000A/5ms at 48V DC
Coil power (W)	K Start: 30-42，2K Start: 60-82, Keep: 0
Temperature rise of coil (K)	Normal temperature
Temperature rise on outgoing terminal (K)	≤65
Electrical life	10,000 times
Mechanical life	300,000 times
Work specification	Continuous
Contact material	Ag alloy
Load terminal type	M12 Screw
Coil terminal type	0.3 square wire,320mm long
Auxiliary contact rated load (optional)	2A/48VDC, 5A/24VDC
Testing organization certification	CE,FCC

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

Load Characteristic Curve

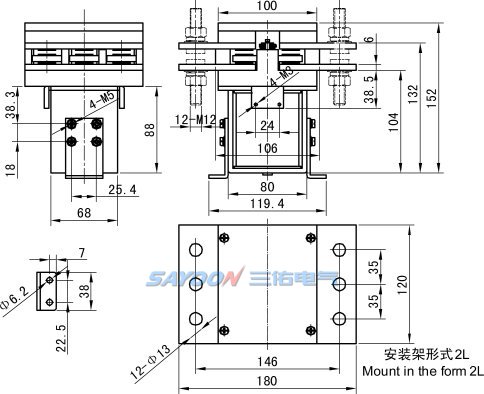

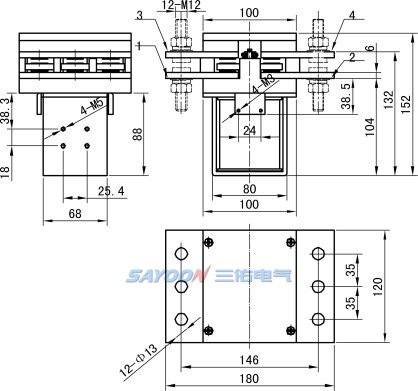

Installation Diagram

Wiring Diagram

Other Wiring Diagram

Mechanical Ability And Use Of The Environment

Contact lead M12 tightening torque (N.m)	≯30 appropriate
Coil lead-out torque (N.m)	≯0.8 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International protection	IP40 (According IEC60947)

Order Instruction

SAYOON Product Type	CZWH1600A-K
Package QTY.	4PCS
Mounting bracket type	2L Two vertical (default), 1L One vertical, M Horizontal

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: Magnetic Holding DC Contactor CZWH1600A-K/24V 100pcs, indicating the load rated current 1600A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
