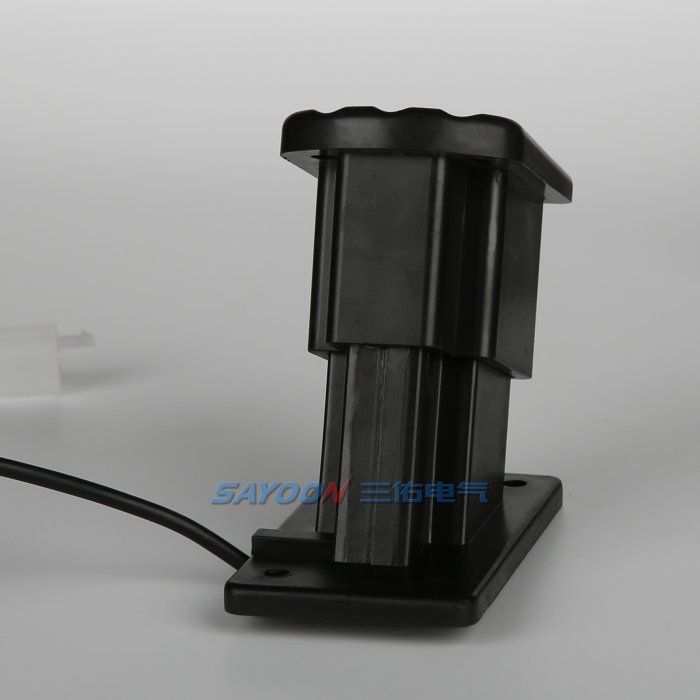

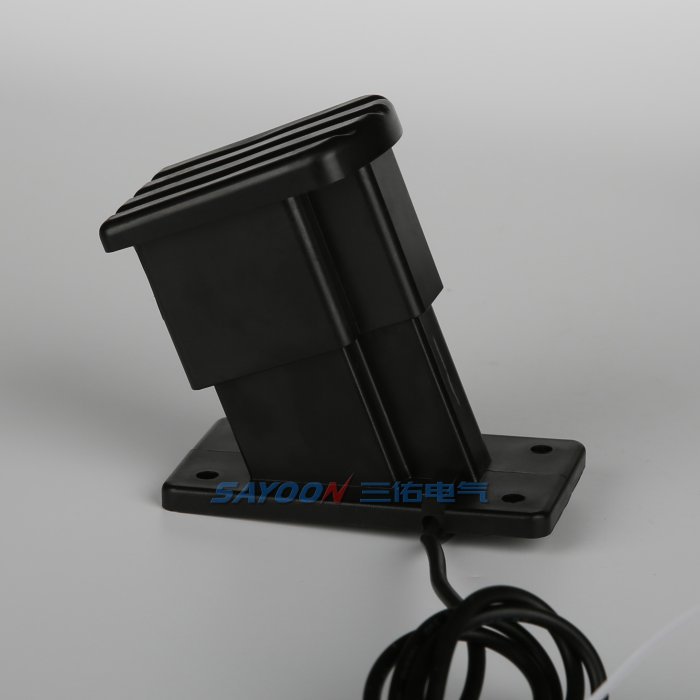

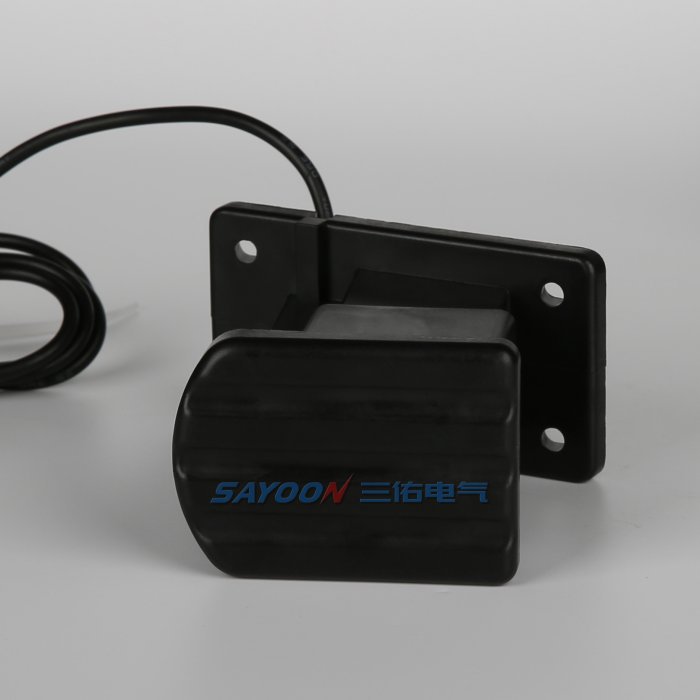

JK5 Foot Throttle

Foot speed control for electric vehicles, electric tricycles, trucks, recreational vehicles, classic cars, brick cars, solar boats

product details

SAYOON MODEL IMPLICATION

JK5

-□

1	Product type
2	Plug type D: 2.8 insert (2.8P); A: 6.3 snap spring (6.3H)
3	Output voltage: 0.8-4.2V; 0-5V

USES

Foot speed control for electric vehicles, electric tricycles, trucks, recreational vehicles, classic cars, brick cars, solar boats

TECHNICAL PARAMETERS: (Version 1.41)

SAYOON Product Type	JK5
Input voltage	5V
Output	0.8-4.2v;0-5V
Output rated load current	10mA
Output type	Positive control
Wire length	1500 mm
Pedal angle	22 degrees
Installation form	Vertical installation
Testing organization certification	CE

Note: The main components of this product use Hall sensors and strong magnets, and interference caused by environmental electromagnetic waves and temperature should be avoided as much as possible during use. If used as signal sampling, it should be filtered before use. Please refer to the Hall parameters for the tolerance of the product output. If there are any selection issues, please contact our technical personnel.

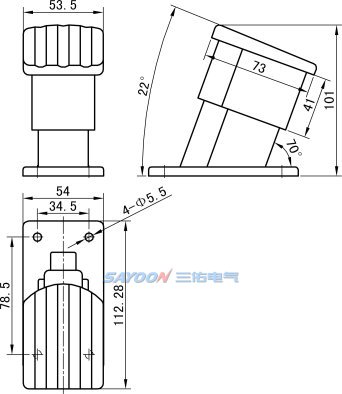

INSTALLATION DIAGRAM

WIRING DIAGRAM

OTHER WIRING DIAGRAM

MECHANICAL ABILITY and USE of the ENVIRONMENT

Ambient temperature	-30~+85℃
Relative humidity	+20℃ 98%
the vibration frequency of the fixed	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International protection	IP64

ORDER INSTRUCTION

SAYOON Product Type	JK5
U.N.W.	217g
Package QTY.	100pcs
Meas.(cm)	504040

Please specify the following information when placing an order: name, complete model, and quantity ordered. For example: JK5-D 0.8-4.2V 100 pieces. Special output voltage specification products can be ordered by users if needed.
