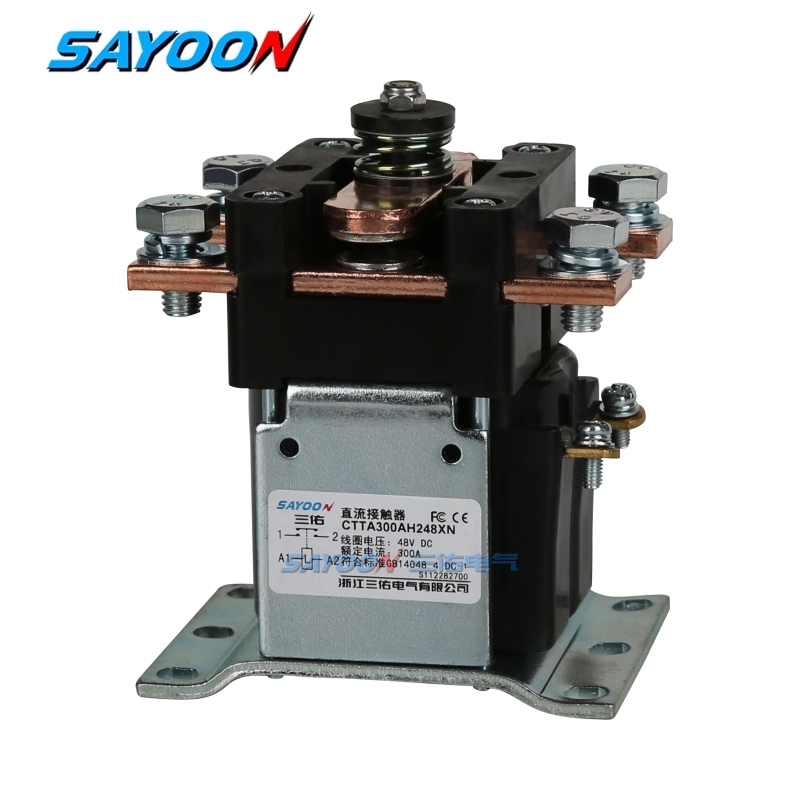

What are non-polarized and polarized DC contactors?

I. Non-Polarized Dc Contactor

• Core Feature: Some of the magnetic circuit does NOT contain a permanent magnet. Its iron core is made of soft magnetic material (like silicon steel sheets).

• Working Principle:

  1. When the coil is energized, it generates an electromagnetic force that overcomes the spring's resistance, driving the movable iron core (armature) to close and bring the contacts together.

  2. When the coil is de-energized, the electromagnetic force disappears. The spring returns the armature to its open position, disconnecting the contacts.

  3. Key Point: Regardless of the current direction in the coil (positive or negative connection), the generated electromagnetic force is always an attractive force. This is because the direction of the force depends on the magnetic flux, and the flux direction changes simultaneously with the current direction, so the force direction remains unchanged.

• Advantages:

  • Simple structure, lower cost.

  • Coil is polarity-insensitive, easy to wire, and has no requirement for Power Supply polarity.

• Disadvantages:

  • Relies on spring force to open after coil de-energization. Arc extinguishing capability is relatively weaker when interrupting high-current DC circuits.

  • Cannot maintain its state on its own; requires continuous power to remain closed.

• Typical Applications:

  • General-purpose DC circuit control.

  • Applications converted from AC contactors for DC operation.

  • Circuits where polarity is not a concern or where the power supply polarity might change.

II. Polarized DC Contactor (Permanent Magnet Latching Type)

• Core Feature: The magnetic circuit contains an embedded permanent magnet. This is the fundamental difference from the "non-polarized" type.

• Working Principle (Taking the most common dual-coil type as an example):

  1. Closing Process: A current in the correct direction is applied to the "close coil." The magnetic field it generates is in the same direction as the permanent magnet's field, combining forces to create a strong pull for closure.

  2. Latched State: After closing, even if the close coil current is cut off, the magnetic force from the permanent magnet alone is sufficient to overcome the spring force, keeping the contactor closed without any continuous power consumption. This saves energy and is silent.

  3. Opening Process: A reverse current is applied to the "trip coil" (sometimes the same coil is used for both functions). The magnetic field it generates is opposite to the permanent magnet's field, canceling it out. This rapidly reduces the total magnetic force to below the spring force, achieving reliable opening.

  4. Polarity Requirement: The coil current direction must be correct; otherwise, proper operation fails (reverse connection may prevent closing or opening).

• Advantages:

  • Energy Efficient: Latches closed via permanent magnet, consuming no power in the held state.

  • Silent Operation: No current in the held state means no electromagnetic hum.

  • High Breaking Capacity: Permanent magnet arc-blowing technology rapidly stretches and cools the arc, providing excellent ability to interrupt high-voltage, high-current DC.

  • High Safety: Opening requires a reverse pulse, offering better resistance to vibration and accidental power loss.

• Disadvantages:

  • More complex structure and higher cost.

  • Strict polarity requirements for the coil; the control circuit must provide correct forward and reverse pulses.

• Typical Applications:

  • New Energy Electric Vehicles: Main contactors, pre-charge contactors, etc., for connecting and isolating high-voltage batteries.

  • Photovoltaic Systems: DC combiners, DC-side switches in inverters.

  • Energy Storage Systems: Battery pack connection and control.

  • Rail Transportation: DC control in locomotive traction systems.

  • Any application requiring reliable, fast interruption of high-power DC.

Core Comparison Summary Table

In Simple Terms:

• Non-Polarized: Like a regular electromagnet—energize to close, de-energize to open. Doesn't care about current direction.

• Polarized (Permanent Magnet): Like an electromagnet with a "magnetic foundation stone." Requires current in the correct direction to make it move or release, but it locks itself after action, making it more energy-efficient and powerful.

In modern high-end DC applications (especially in the new energy sector), polarized (permanent magnet latching) DC contactors have become the dominant choice due to their superior breaking performance, energy efficiency, and reliability. Traditional non-polarized types are more common in general industrial applications with lower performance requirements.
