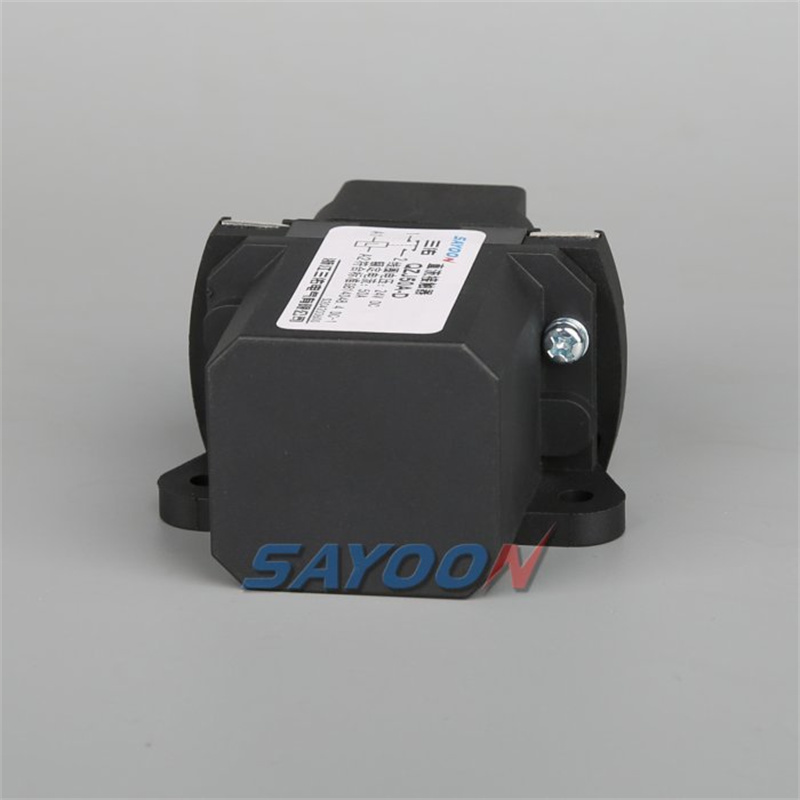

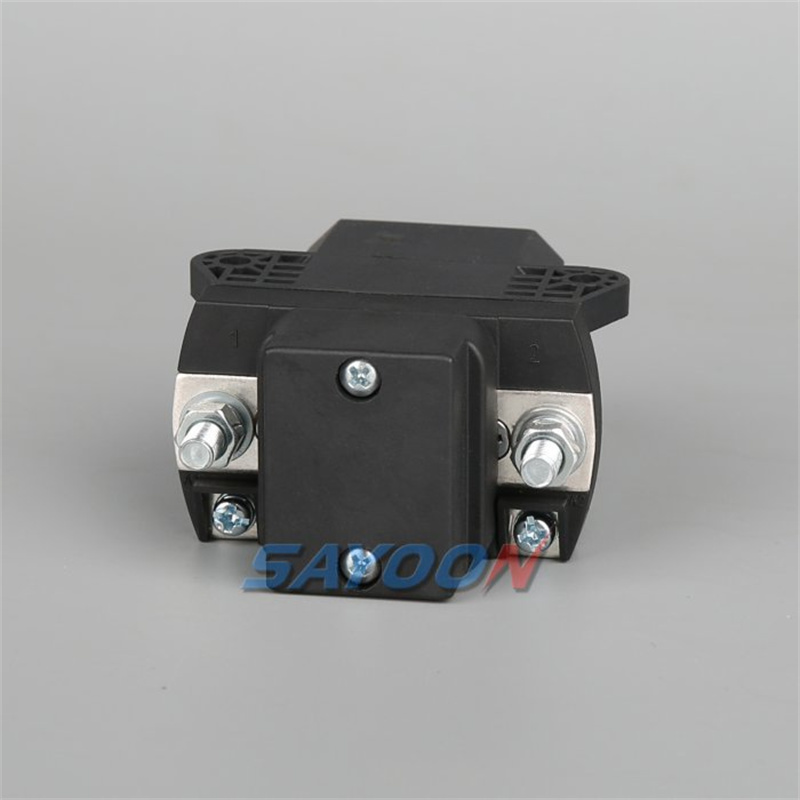

QZJ50A-D Normally Open DC Contactor

Normally open DC contactors can help optimize power distribution and improve the overall efficiency of the system in terms of power management. With the development of renewable energy technology, the application of normally open DC contactors in solar and wind energy systems is also increasing, ensuring that these systems can operate efficiently and safely.

product details

FEATURES

Normally Open DC Contactor Application areas:

Motor start and stop control

Power management of automation equipment

Control of solar and wind energy systems

Traffic lights and other control systems

Normally open DC contactors are ideal for efficient and safe circuit control, meeting various application requirements and ensuring stable operation of the system.

SAYOON MODEL IMPLICATION

QZJ	50A	-D	-S	-□	-□	■	/□
1	2	3	4	5	6	7	8

1	Product type
2	Rated current
3	Coil type: None-Double coil structure; D-Single coil structure
4	Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch
5	Mounting bracket type: None-M Horizontal (default)
6	Other function codes
7	Other special functions: V-With capacitive load
8	Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

Uses

This product have one normally open contact, for 5G cabinet, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.

Technical Parameters: (Version 1.33)

SAYOON Product Type	QZJ50A-D
Contact form	1 NO
Coil Rated voltage (DC V)	6V,12V,24V,36V,48V,60V,72V,96V etc.
Contact voltage (DC V)	≤150V
Rated load current of contact 48V circuit (A)	50A
Rate load current of contact circuit	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯70%
The cooling drop-out voltage at (20±5)℃ (V)	≯50%,≮5%
Working voltage range of 40℃ coil	0.8-1.2Us
Drop-out time (n/o contacts to open)	15ms
Pull-in time (n/o contacts to close)	5ms
Maximum bounce time for contact connection	10ms
Maximum bounce time for contact disconnection	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	600A/5ms at 48V DC
Coil power (W)	5-9
Temperature rise of coil (K)	≤60
Temperature rise on outgoing terminal (K)	≤65
Electrical life	20,000 times
Mechanical life	300,000 times
Work specification	Continuous
Contact material	Ag alloy
Load terminal type	M5 Screw
Coil terminal type	M3 Screw

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

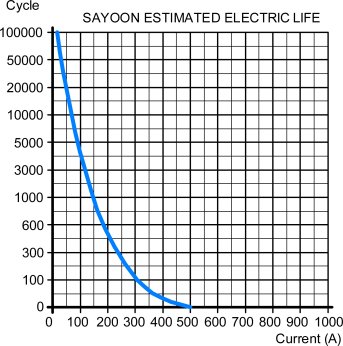

Load Characteristic Curve

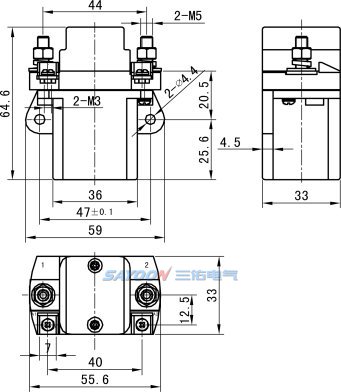

Installation Diagram

Wiring Diagram

Temperature Curve

Mechanical Ability And Use Of The Environment

Contact lead M5 tightening torque (N.m)	≯2.5 appropriate
Coil lead M3 tightening torque (N.m)	≯0.8 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International Protection	IP40 (According IEC60947)

Order Instruction

SAYOON Product Type	QZJ50A-D
U.N.W.	204g
Mounting bracket type	None - M Horizontal (default)

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: DC Contactor QZJ50A-D/24V 100pcs, indicating the load rated current 50A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
