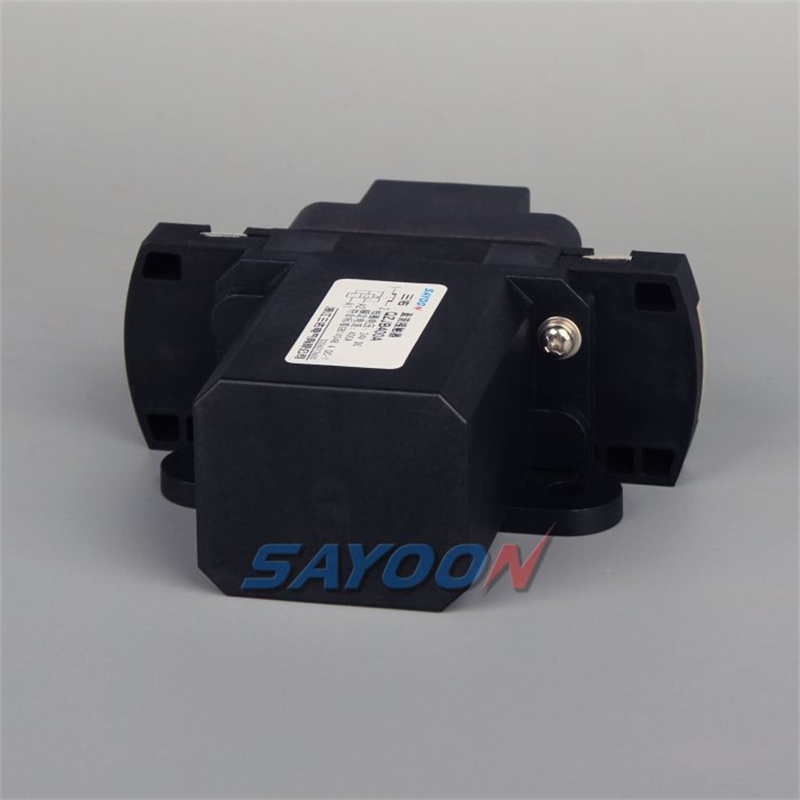

QZJB400A Normally Closed DC Contactor

The adaptability of normally closed DC contactors makes them suitable for a wide range of applications in different sectors. From renewable energy systems to automotive applications, their ability to provide reliable control in DC circuits is invaluable. As industries continue to evolve and adopt new technologies, the demand for effective switching devices such as normally closed DC contactors will only increase.

product details

FEATURES

The normally closed DC contactor is an important electrical component that plays a key role in controlling the flow of current in a DC circuit. Its unique operating design allows the circuit to remain closed when the power is removed, providing significant advantages in safety, fault protection and energy management. These contactors have a wide range of applications in various industries and are essential to ensure that electrical systems operate safely and reliably.

SAYOON MODEL IMPLICATION

QZJB	400A	-S	-□	-□	■	/□
1	2	3	4	5	6	7

1	Product type
2	Rated current
3	Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch
4	Mounting bracket type: M-Horizontal (default)
5	Other function codes
6	Other special functions: V-With capacitive load
7	Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

Uses

This product have one normally close contact, for 5G cabinet, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.

Technical Parameters: (Version 1.28)

SAYOON Product Type	QZJB400A
Contact form	1 NC
Coil Rated voltage (DC V)	6V,12V,24V,36V,48V,60V,72V,96V etc.
Contact voltage (DC V)	≤150V
Rated load current of contact 48V circuit (A)	400A
Rate load current of contact circuit	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯70%
The cooling drop-out voltage at (20±5)℃ (V)	≯50%,≮5%
Working voltage range of 40℃ coil	0.8-1.2Us
Drop-out time (n/o contacts to open)	25ms
Pull-in time (n/o contacts to close)	15ms
Maximum bounce time for contact connection	10ms
Maximum bounce time for contact disconnection	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	1500A/5ms at 48V DC
Coil power (W)	Start: 35-65, Keep: 3-8
Temperature rise of coil (K)	≤40
Temperature rise on outgoing terminal (K)	≤65
Electrical life	20,000 times
Mechanical life	300,000 times
Work specification	Continuous
Contact material	Ag alloy
Load terminal type	M10 Screw
Coil terminal type	M3 Screw

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

Load Characteristic Curve

Installation Diagram

Wiring Diagram

Temperature Curve

Mechanical Ability And Use Of The Environment

Contact lead M10 tightening torque (N.m)	≯20.5 appropriate
Coil lead M3 tightening torque (N.m)	≯0.8 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International Protection	IP40 (According IEC60947)

Order Instruction

SAYOON Product Type	QZJB400A
Mounting bracket type	M Horizontal (default)

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: DC Contactor QZJB400A/24V 100pcs, indicating the load rated current 400A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
