01

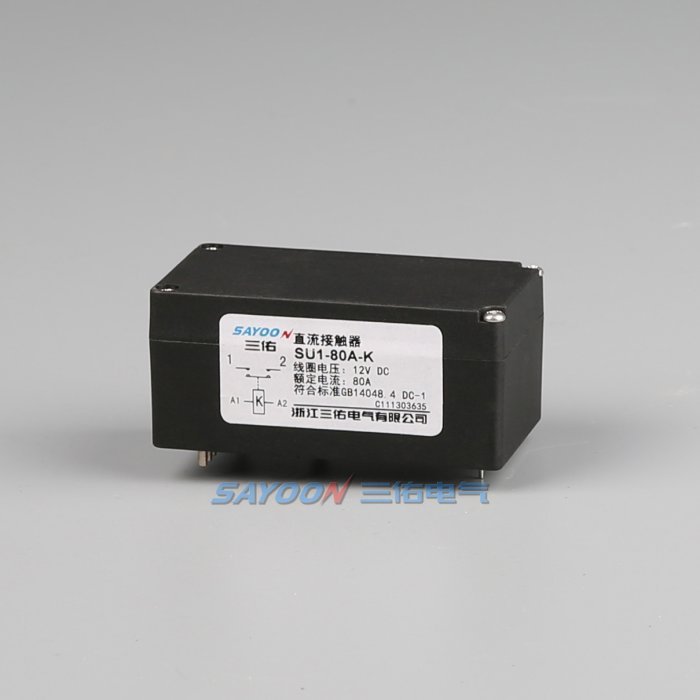

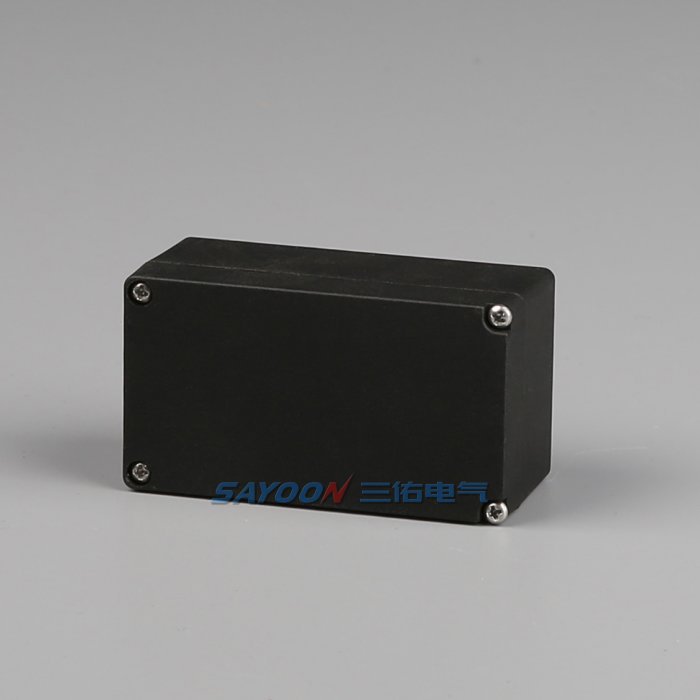

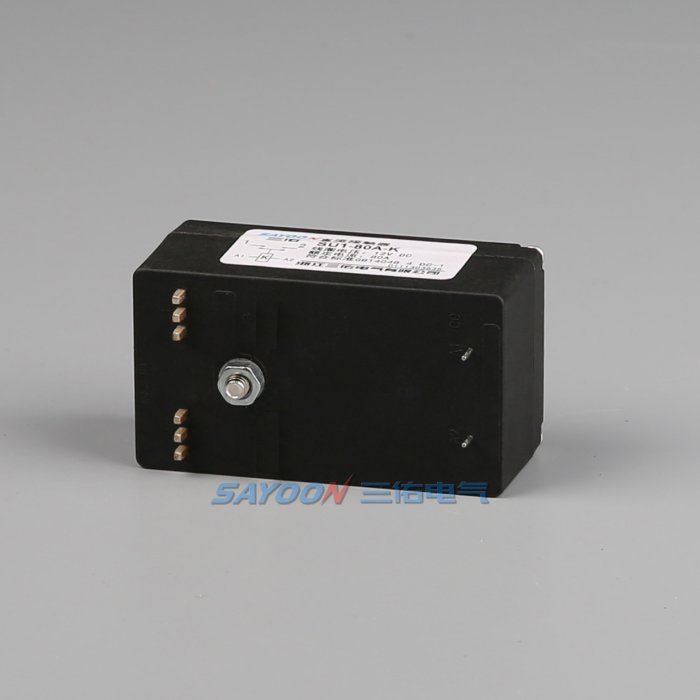

SU1-80A DC Contactor
FEATURES
Suitable for electric forklift, battery cars, tractors, excavators, brick machine, cleaning vehicles, automotive air-conditioning, communication power supply, uninterruptible power supply, power supply switches such as electroplating electronic control system control circuit, has the advantages of small volume, large load capacity, long service life, easy maintenance and other characteristics, welcomed by users. The products in accordance with the standard of the JB2286-78, JB3974-85, YD / 585-92, YD / T512-92 requirements; the plant and related test unit test, meet the standard requirements, the user use for many years, the maximum to meet user needs, quality and reliable.
SAYOON MODEL IMPLICATION
|
SU1 |
-80A |
-K |
-C |
/□ |
|
|
|
|
|
|
1 |
2 |
3 |
4 |
5 |
|
|
|
|
|
|
1 |
Product type: 1NO | |||||||
|
2 |
Rated current | |||||||
|
3 |
Magnetic holding structure | |||||||
|
4 |
Magnetic blowouts | |||||||
|
5 |
Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc. | |||||||
USES
This product have one normally open contact, for 5G base station,1U cabinet, electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.
TECHNICAL PARAMETERS: (Version 1.33)
|
SAYOON Product Type |
SU1-80A |
| Contact form | 1 NO |
| Coil Rated voltage (DC V) | 6V,12V,24V etc. |
| Contact voltage (DC V) | ≤80V |
| Rated load current of contact (DC-1) | 80A |
| Typical voltage drop across contacts per 100A | ≤80mV |
| The cooling pull-in voltage at (20±5)℃ (V) | ≤70% |
| The cooling drop-out voltage at (20±5)℃ (V) | ≤35%, ≥5% |
| Working voltage range of 40℃ coil | 0.8-1.2Us |
| Drop-out time (n/o contacts to open) | 40ms |
| Pull-in time (n/o contacts to close) | 12ms |
| Maximum bounce time for contact connection | 10ms |
| Maximum bounce time for contact disconnection | 3ms |
| Insulation resistance | 20MΩ |
| Electric strength to resist | 50Hz/60Hz 1000VAC 1minute |
| Typical fault currents which can be ruptured | 600A/5ms at 48V DC |
| Coil power (W) | 5-10 |
| Temperature rise of coil (K) | ≤60 |
| Temperature rise on outgoing terminal (K) | ≤65 |
| Electrical life | 10,000 times |
| Mechanical life | 300,000 times |
| Work specification | Continuous |
| Contact material | Ag alloy |
| Load terminal type | PCB welding |
| Coil terminal type | PCB welding |
Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

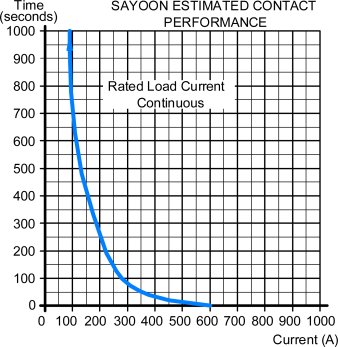

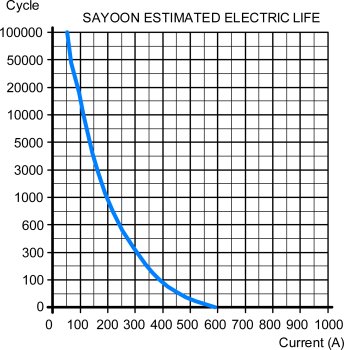

LOAD CHARACTERISTIC CURVE

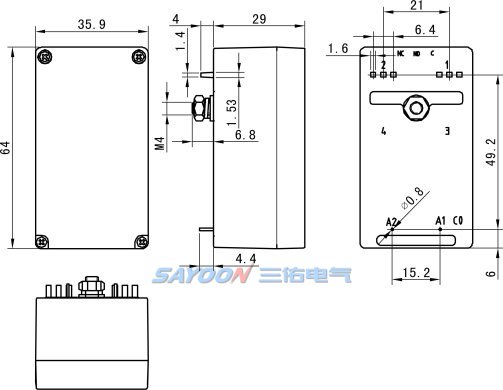

INSTALLATION DIAGRAM
WIRING DIAGRAM

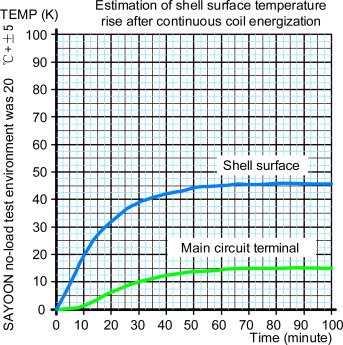

TEMPERATURE CURVE
MECHANICAL ABILITY and USE of the ENVIRONMENT
| Ambient temperature | -40~+70℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1～50Hz amplitude 0.5mm |
| Concussion | (60～100) time/minute、acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP60 (According IEC60947) |
ORDER INSTRUCTION
|
SAYOON Product Type |
SU1-80A |
| U.N.W. | 190g |
| Package QTY. | 50pcs |
| DIM.(cm) | 36*30*14 |
| Mounting bracket type | PCB plug-in,M4 fixed again |
When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: PCB DC Contactor SU1-80A/24V 100pcs, indicating the load rated current 80A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
