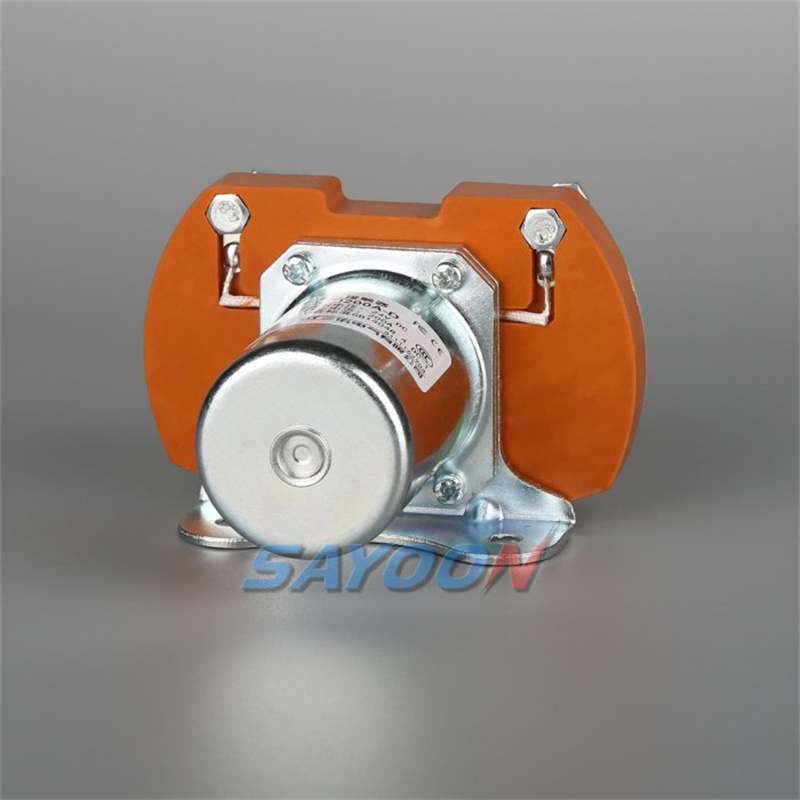

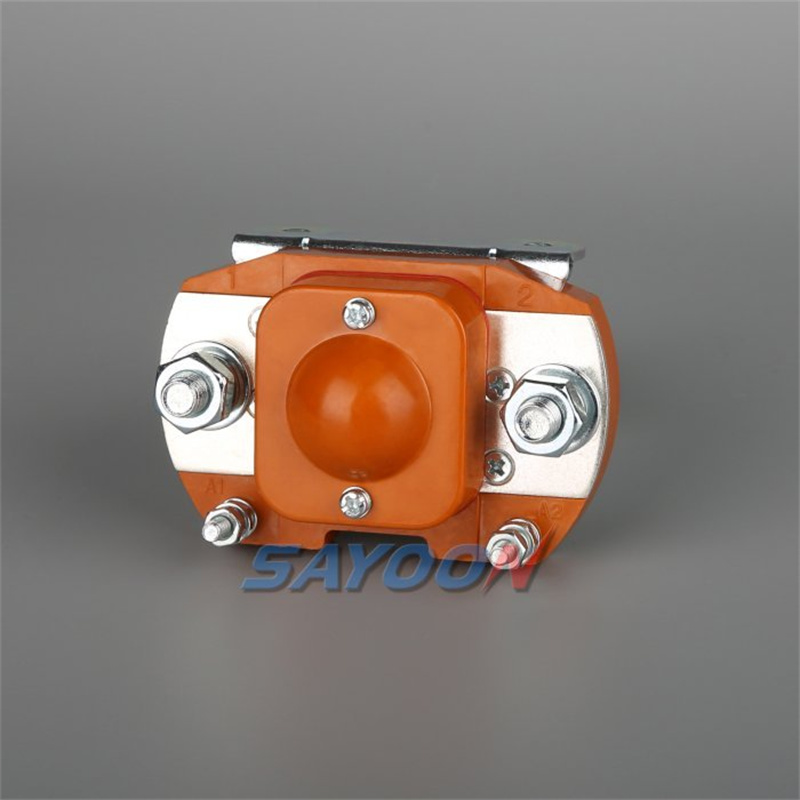

SZJB300A-D Normally Closed DC Contactor

Another important application is automation control. In various automation systems, these contactors are used to manage the start and stop functions of machinery. By using normally closed contactors, operators can ensure that the equipment is safely shut down under specific conditions, such as during maintenance or when a fault is detected. This feature improves the overall safety and reliability of the automation process.

product details

FEATURES

Battery management systems also benefit from the use of normally closed DC contactors. In situations where the battery is at risk of overload or short circuit, these contactors can effectively cut off the power supply, protecting the battery and circuit from damage. This application is particularly important in electric vehicles and renewable energy systems, where battery safety is a top priority.

SAYOON MODEL IMPLICATION

SZJB	300A	-D	-S	-□	-□	/□
1	2	3	4	5	6	7

1	Product type
2	Rated current
3	Coil type: D-Single coil structure
4	Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch
5	Mounting bracket type: None-M Horizontal (default); E-Level embedded; X-Oblique; L(N)-Vertical; E1-Level embedded single direction
6	Other function codes
7	Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

Uses

This product have one normally close contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.

Technical Parameters: (Version 1.81)

SAYOON Product Type	SZJB300A-D
Contact form	1 NC
Coil Rated voltage (DC V)	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc.
Contact voltage (DC V)	≤60V
Rated load current of contact 48V circuit (DC-1)	300A
Typical voltage drop across contacts per 100A	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯70%
The cooling drop-out voltage at (20±5)℃ (V)	≯35%,≮5%
Working voltage range of 40℃ coil	0.8-1.2Us
Drop-out time (n/o contacts to open)	10ms
Pull-in time (n/o contacts to close)	20ms
Maximum bounce time for contact connection	10ms
Maximum bounce time for contact disconnection	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	1000A/5ms at 48V/DC
Coil power (W)	7-15
Temperature rise of coil (K)	≤80
Temperature rise on outgoing terminal (K)	≤65
Electrical life	20,000 times
Mechanical life	300,000 times
Work specification	Continuous
Contact material	Ag alloy
Load terminal type	M8 Screw
Coil terminal type	M4 Screw
Auxiliary contact rated load (optional)	2A/48VDC, 5A/24VDC，1NO 1NC
Testing organization certification	CE,FCC,RoHS

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

Load Characteristic Curve

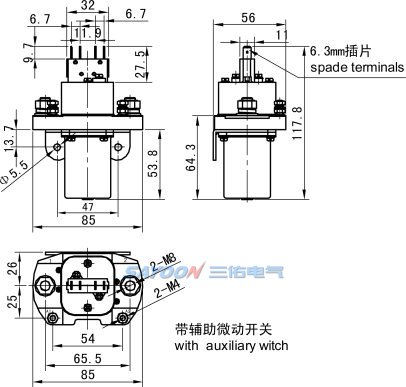

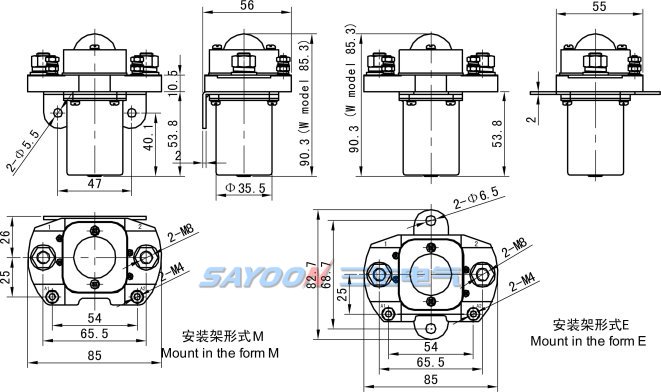

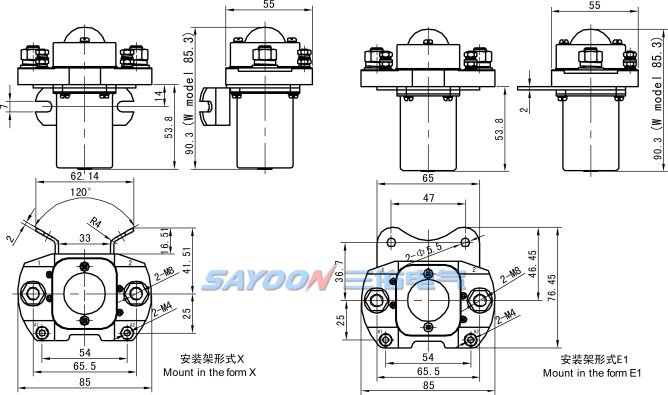

Installation Diagram

Wiring Diagram

Temperature Curve

Mechanical Ability And Use Of The Environment

Contact lead M8 tightening torque (N.m)	≯9.0 appropriate
Coil lead M4 tightening torque (N.m)	≯1.2 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International Protection	IP40 (According IEC60947)

Order Instruction

SAYOON Product Type	SZJB300A-D
U.N.W.	530g
Package QTY.	50PCS
Mounting bracket type	None - M Horizontal(default), E Level Embedded, X Oblique, L (N) Vertical, E1 Level embedded single direction

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: DC Contactor SZJB300A-D/24V 100pcs, indicating the load rated current 300A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
